Intelbras DDNS Setup


Intelbras has integrated No-IP in their new devices allowing an easy way to setup Dynamic DNS (DDNS) directly on your router instead of using a separate client.

Setup

First, log into your router.

Login Instructions
While connected to the network, open a browser and enter 10.0.0.1 in your search bar. Use the username and password you have configured for your router to login. If you haven’t yet changed your router credentials, the default username and password is admin.

Intelbras login

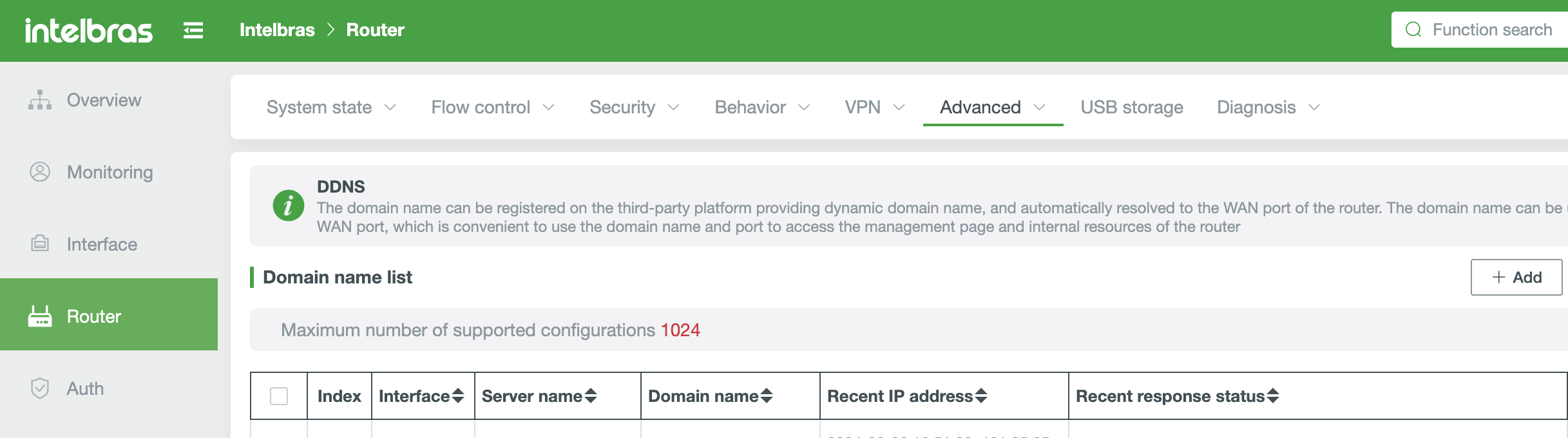

Next, select Router and find DDNS under the Advanced tab.

Intelbras Navigation

On the DDNS page, click + Add

DDNS Page

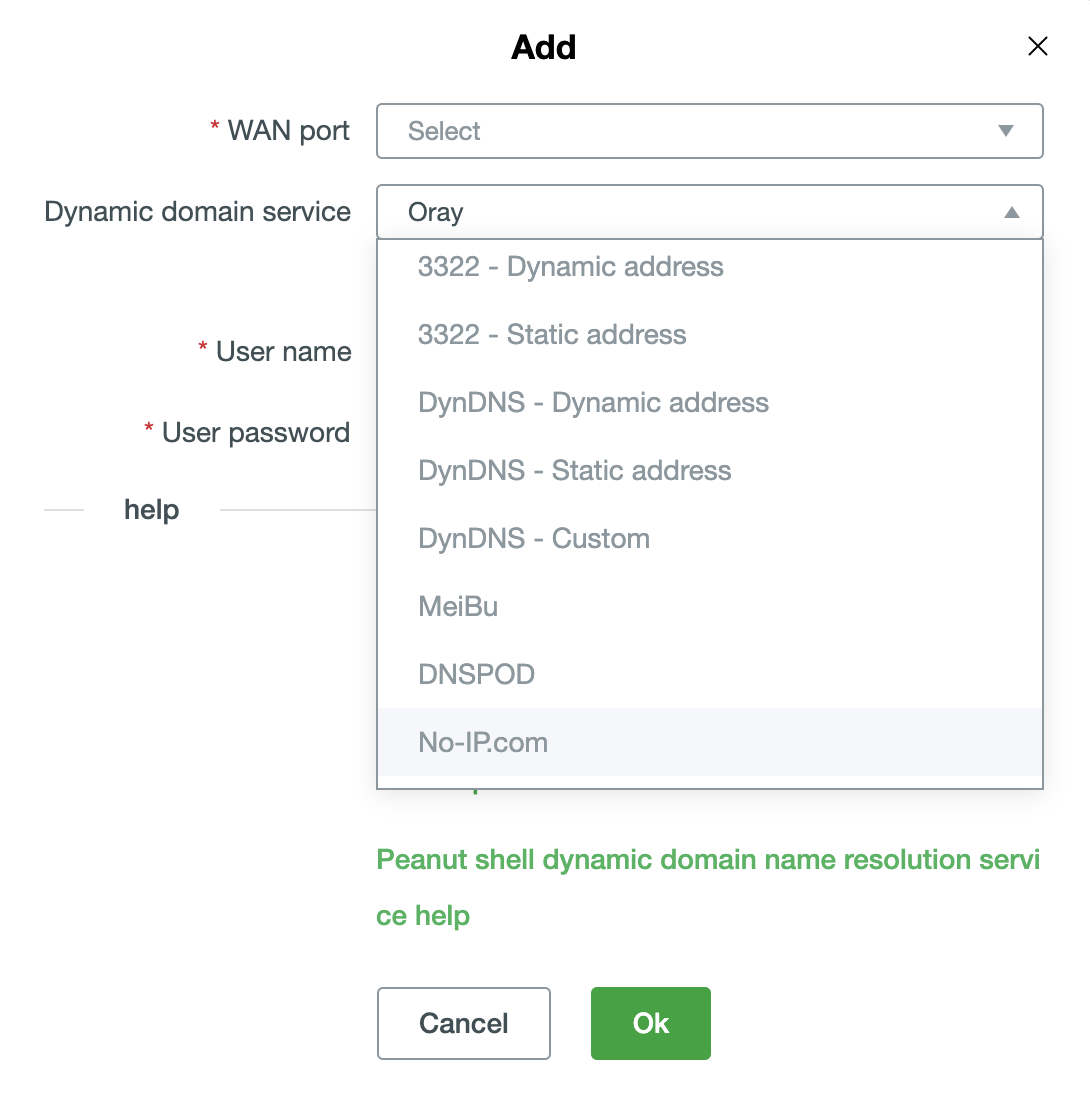

The “Add” modal is where we configure the DDNS settings. Select your WAN port, then click on the dropdown for “Dynamic domain service” and select No-IP.com

Screenshot 2024-06-26 at 11.53.09 AM

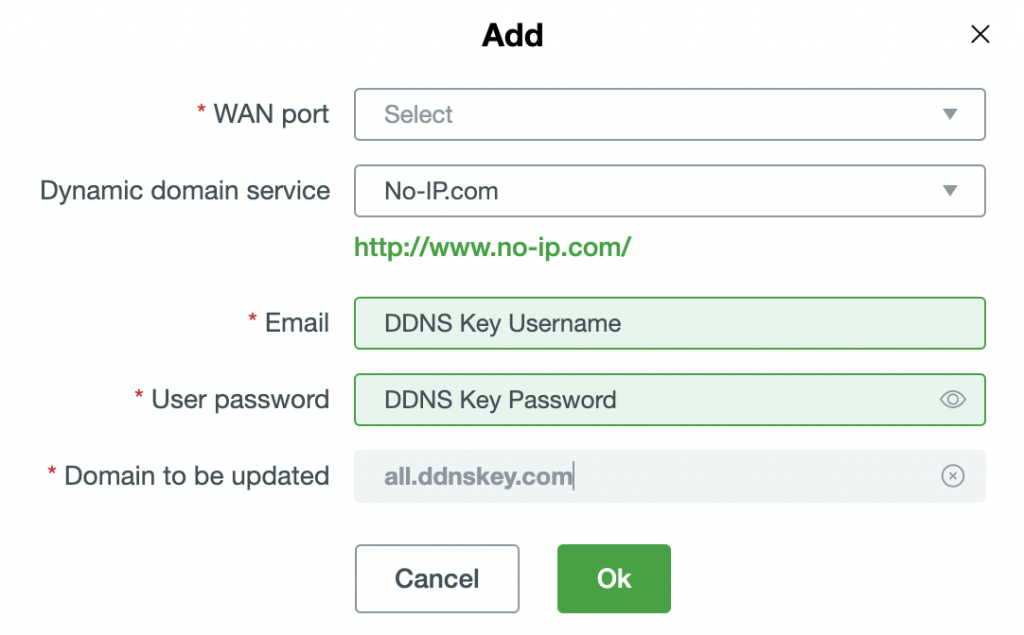

Enter the following settings. Replace DDNS Key Username and DDNS Key Password with your own DDNS Key credentials.

DDNS Keys are individual credentials for a hostname or group of hostnames. See our DDNS Key article for more information.

No-IP Intelbras DDNS Settings

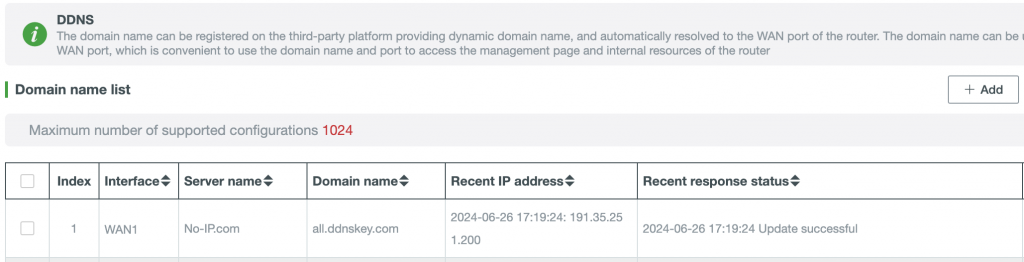

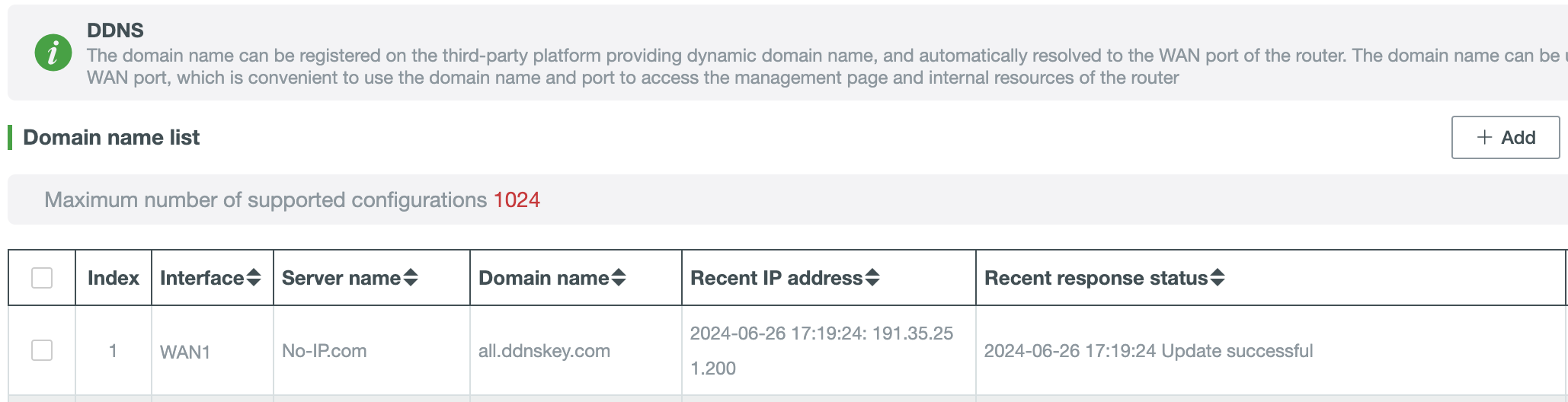

Click Ok and you will be returned to the DDNS page and shown the status of your configuration. If everything was configured correctly, the response will state “Update successful”

Update Successful Intelbras

Next Steps

If you are configuring a remote connection, you must now port forward to the device you are trying to connect to.

A Intelbras integrou a No-IP em seus novos dispositivos, permitindo uma maneira fácil de configurar o DNS dinâmico (DDNS) diretamente no roteador, em vez de usar um cliente separado.

Configuração

Primeiro, faça login no seu roteador.

Instruções de login
Enquanto estiver conectado à rede, abra um navegador e digite 10.0.0.1 na barra de pesquisa. Use o nome de usuário e a senha que você configurou para o seu roteador fazer login. Se ainda não alterou as credenciais do roteador, o nome de usuário e a senha padrão são admin.

Em seguida, selecione Roteador  e encontre DDNS na guia Avançado.

Na página DDNS, clique em + Adicionar

O modal “Adicionar” é onde as configurações de DDNS são definidas. Selecione sua porta WAN, clique na lista suspensa de “Serviço de domínio dinâmico” e selecione No-IP.com

Insira as configurações a seguir. Troque o nome de usuário da chave DDNS e a senha da chave DDNS por suas próprias credenciais da chave DDNS.

As chaves DDNS são credenciais individuais para um nome de host ou grupo de nomes de host. Consulte nosso artigo sobre a chave DDNS para obter mais informações.

Clique em OK para retornar à página DDNS e ver o status de sua configuração. Se tudo foi configurado corretamente, a resposta indicará “Atualização bem-sucedida”

Próximas etapas

Se estiver configurando uma conexão remota, agora você deverá ser direcionado para o dispositivo ao qual está tentando se conectar.
